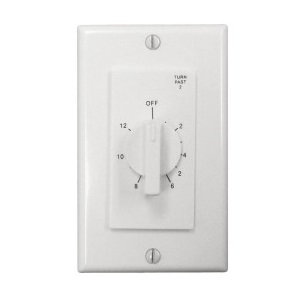

The MarkTime® 935 Décora Series In-Wall Timers are interchangeable with any standard single or multi-gang wall switch. These energy saving timers use no electricity to operate and automatically limit the “ON” time of energy consuming loads.
The Décora Series in-Wall Timer switch is an easy upgrade from any single pole wall switch. The 935 Series can be used in a variety of residential and light commercial applications providing convenient timed control of lighting, fans, heaters, motors and other energy consuming loads.
FEATURES & BENEFITS
• Versatile time limits allow for quick, simple operation while providing the most effective energy management.
• Select models have a convenient hold feature to override automatic shutoff.
• Combined N.O. and N.C. switching configurations give the convenience and versatility of either typical operation; turning a load on during time delay or reverse operation of turning the load off during time delay.
• Switching Convenience - SPST switching with the option to be wired for SPDT.
• No neutral required – great for retrofits, saves time and money.
• White & ivory decorator dials & knobs included so you carry 1 SKU VS. 2; saving counter space & inventory cost.
• Supplied decorator dials can be installed with either standard or decorator wall plates.
• Fits single or multi-gang wall box to replace a single-pole wall switch for fast easy installation.
Caution: Not to be used in precision timing applications where inaccurate timing could have dangerous consequences. (i.e. sun lamp, tanning beds etc.) Do not use with fluorescent lamp ballasts.
|Input||125 - 277 VAC, 60 Hz|
|Tungsten||7A - 125 VAC|
|Resistive||20A - 125 VAC|
|Resistive||10A - 250 VAC|
|Motor||1 Hp - 250 VAC|
