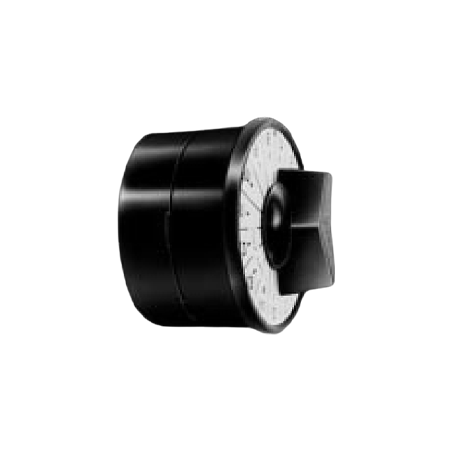

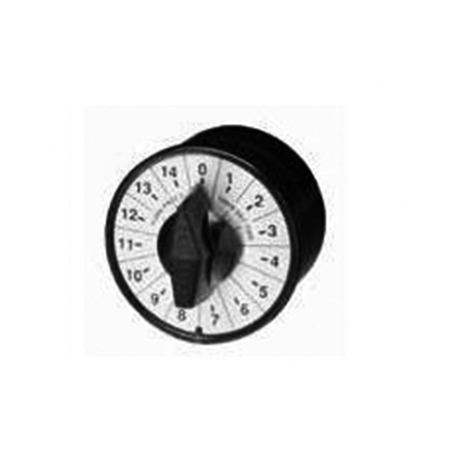

Marktime 74701 Panel Mount Timers

Marktime 74701 Panel Mount Timers
Images for general purposes only. Actual may be different than depicted.
Marktime 74701 Panel Mount Timers

Marktime 74701 Panel Mount Timers

SKU: 74701
Usually Ships 5-7 Days
Rating: (1)
$122.99 /ea

The MARKTIME® 70 Series Panel Mount Time Switch is a timer with a 15 minute period and a current of heavy duty 20 amp time switch available in either SPST, SPDT or DPST switch configuration, in a variety of panel mountings. Specifically designed for handling high current loads, the 70 Series provides the highest amperage rating of any mechanical panel mount time switch and is easy to install. Our customer service staff stands ready to work with you to meet any time control requirement.

Specifically engineered for demanding applications that require high amperage loads while remaining easy to install and operate such as:

  • pool, spa, and sauna in the home and industry
  • track, fluorescent and incandescent lighting
  • heating and heavy duty blower control
  • industrial and commercial cooking equipment
  • medical equipment
  • process control equipment
  • Time ranges up to 15 minutes
  • Compact, easy to install, and wire
  • Packaged complete with switch, dial, knob, bracket and screws
  • SPDT Switching
  • Thru-Panel Mounting
  • UL listed and CSA certified
  • One year limited warranty

  • Easy to use
  • Reliable
  • Mounts in standard enclosures
  • The highest current ratings in a wall box configuration
  • Manufactured using the highest quality materials
Maximum Time Setting 15 mins.
Degree of Wind 360
Mounting Style Through Panel
Reset Type Manual
Switch Configuration N.O./N.C.
Contact Position ON
Operating Temperature Low -20 ºF
Operating Temperature High 250 ºF
Approvals UL
Depth 1.562 in
Diameter 2.562 in
Shaft/Arbor Features:
Minimum Shaft Diameter 0.181 in
Maximum Shaft Diameter 0.183 in
Flat Orientation To Terms Vertical
Across Flats 1.27
Extension from Brackets 0.560
Electrical Ratings Available:
Current Type AC
Power 1 hp
Current 20 Amps
Voltage 240 V
Frequency 60 Hz
Current 20Amp
Horsepower 1Hp
Dimensions Depth 1.562"; Diameter 2.562"
Voltage 120-240V
Frequency 60Hz

By Joe


No, I would not recommend this product to a friend or co-worker

5.0 Great

This was an exact replacment. Delivery was quick.

Q & A: Ask the Questions, share answers

Do you have questions about this product?

What is the difference between #74701 and #74703? What size hole in the panel will this need?
Asked on Jun 29, 2017 by Bill from Watkins Glen, NY
1 Answers

Have an answer? Click Here

The only difference between the 74701 and 74703 os the duration of the timer.
The 74701 is a 15-minute timer, whereas the 74703 is a 60-minute timer.
Both are panel mount, with a 360-degree wind.  The diameter of the timer is approximately 2.562"
Replied on Jun 29, 2017 by Ron from Industrial Stores
