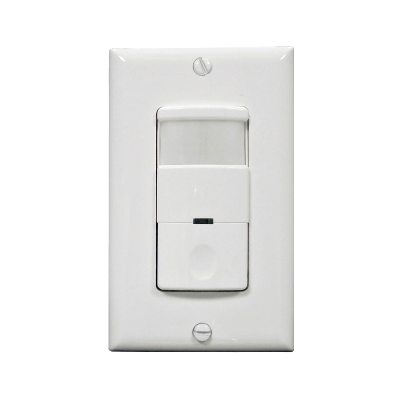

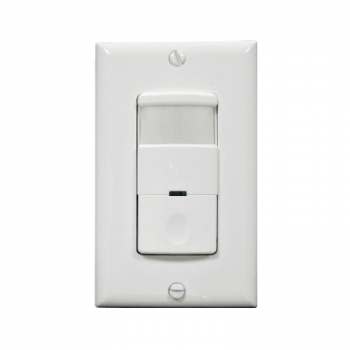

The MarkTime® 42ES5HD PIR (Passive Infrared) Occupancy/ Vacancy Sensor is used to provide automatic lighting control for rooms that are not occupied all the time providing energy savings and convenience. State-of-the-art technology gives you a choice of Manual-ON (Vacancy Sensor) or Auto-ON (Occupancy Sensor) switching.
APPLICATIONS
MarkTime® Occupancy Vacancy Sensors can be used in a variety of residential and light commercial applications. The 42ES5HD is ideal for garages, conference rooms, larger bath areas, utility/laundry rooms, and basements.
FEATURES & BENEFITS
• PIR Technology determines when a space is occupied by detecting heat in the form of infrared energy from people moving in a space. Lights are automatically turned off when the space is unoccupied for optimal energy and cost savings.
• Manual-On or Automatic-On provides users the option to choose the function that best suits their needs.
• Adjustable ambient light level prevents sensor from turning lights on when there is ample natural light for maximum cost and energy savings.

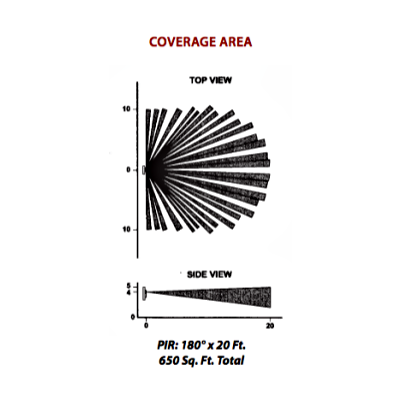

• Sensor sensitivity can be increased for larger rooms and decreased for smaller rooms to reduce false triggering for high reliability.
• Adjustable time delay of 15 seconds to 30 minutes allows for the most effective energy management.

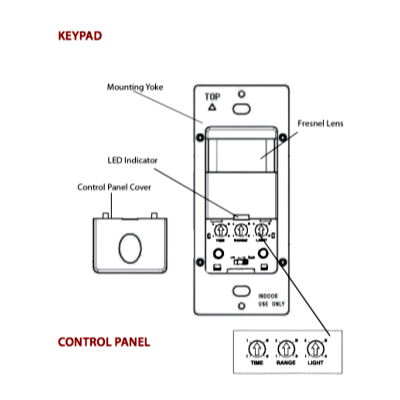

• Manual Pushbutton Override provides manual ON/OFF switching at any time for added convenience.

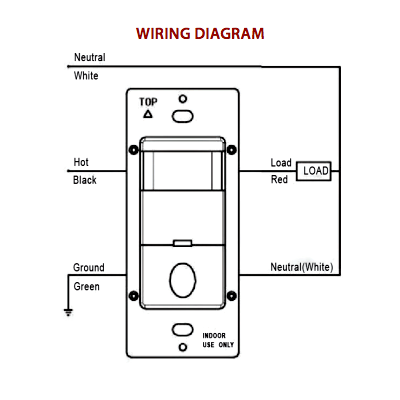

• Fits standard wall box and replaces a single-pole wall switch for fast easy installation.
• Slim design blends in with wall plate for a discreet appearance.
• CA Title 24 Compliant
Input | 120 VAC, 50/60 Hz |
---|---|
Incandescent | 800W |
Fluorescent | 800VA |
Resistive | 800W |
Motor | 1/4 Hp |
